How to Convert Waste Tyres into Fuel Oil through Pyrolysis Process?

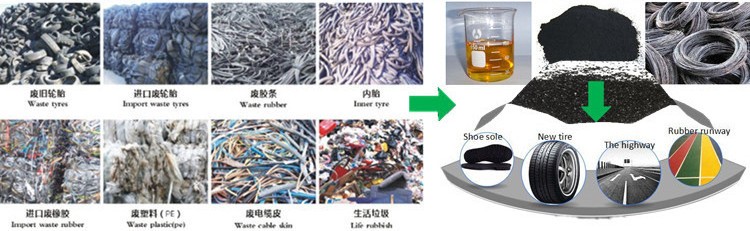

waste tyre pyrolysis plant is applied to extract fuel oil from waste (waste tires, rubbers, plastics, soles, life garbage, cable skin and so on ) from waste rubber to energy, pyrolysis machine.
seperating crude carbon black, steel wires. the sync gas produced can also be recycled to use as fuel to heat reactor
1. Put pre- processed tyres into the reactor by full-automatic feeding machine(taking the fully continuous tyre pyrolysis plant for example) after they are delivered into stock bin by conveyor belt. Total quantity shall be controlled under 2/3 of reactor for rotating more smoothly. Then close the feeding door and open the heating system.
2. From 100 ℃ to 250 ℃ is the preliminary stage , and the oil gas shall be released at 200 ℃ . From 280 ℃ to 350 ℃ is the top output rate interval. Oil gas will be collected into manifold, and the heavy particles and oil will be gathered and liquefied in center of manifold and drop down into the heavy pyrolysis oil tank. The lighter gas will rise up to the multi-functional oil condensers, then be liquefied into oil and stored in the oil tank. The incondensable gas through desulfuration and de-dusting by hydroseal will be led to the furnace for heating.
3. Cool down the reactor after the pyrolysis process. The carbon black will be discharged when the temperature reaches between 50 degrees and 70 degrees. The end products you can get from the waste tyre to oil process are tyre pyrolysis oil, carbon black, steel wire and combustible gas.
