Waste engine oil can be refined into valuable diesel oil through catalytic cracking and high temperature distillation technology. It is a method of separating mixtures based on differences in volatilities of components in a boiling liquid mixture. After being distilled by the distillation plant, the oil may have dark color with bad smell, then we suggest to deep purify the oil, with color and smell removal system, you will get clean diesel oil as final products with beautiful light yellow color.

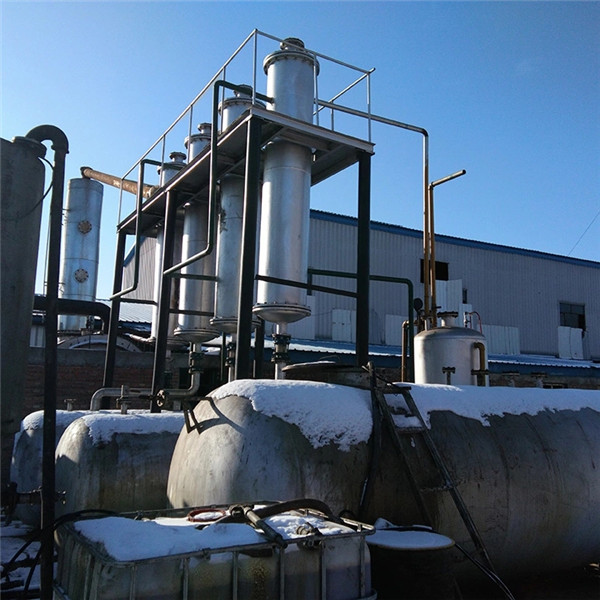

Project Details
1. 10 ton oil refineries equipment per day.

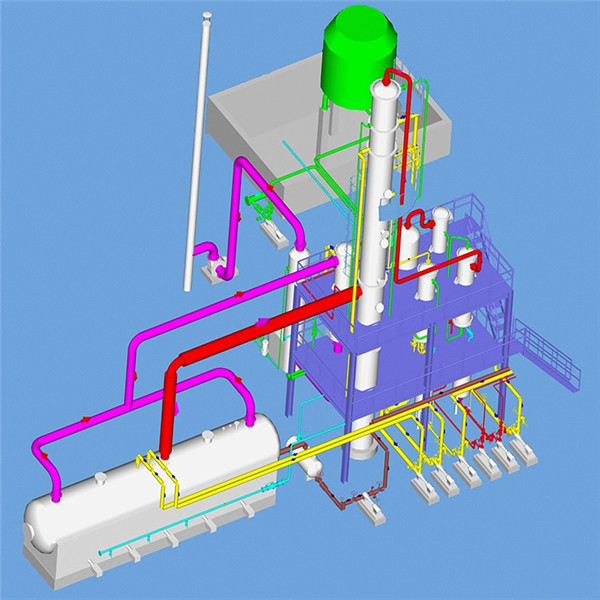

2. The whole set machine including distillation reactor , Fractioning column , condensing parts , dedusting parts , color and smell removal device.
3. Input raw material can be Crude oil , pyrolysis oil , sludge oil , used motor oil , dirty black oil.
4. Output product is clean synthetic diesel oil.
5. Running in a high automatization and intellectualization,no pollution
6. Heating fuel can be coal, wood, pyrolysis oil, natural gas.

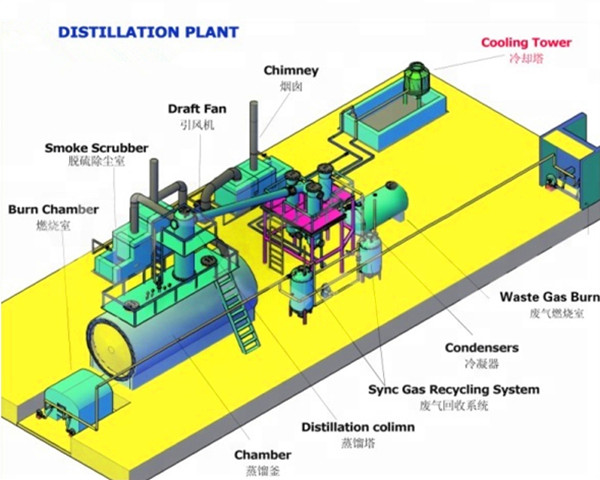

working process
A.preheater
Make remaining hot from the spiral flue outside the reactor to preheat the raw material oil ,it is physical reaction
B.reactor
After preheating ,the hot oil will be transported into the reactor by the oil pump !Before the hot oil into the reactor,there must be some oil at the bottom of the reactor and be heated already!due hot oil has already with some temperature so temperature will be rise more quikly than normal temperature oil in this way it can save energy ,improve effeciency! In this process liquid oil become oil gas little by little !it is physical reaction

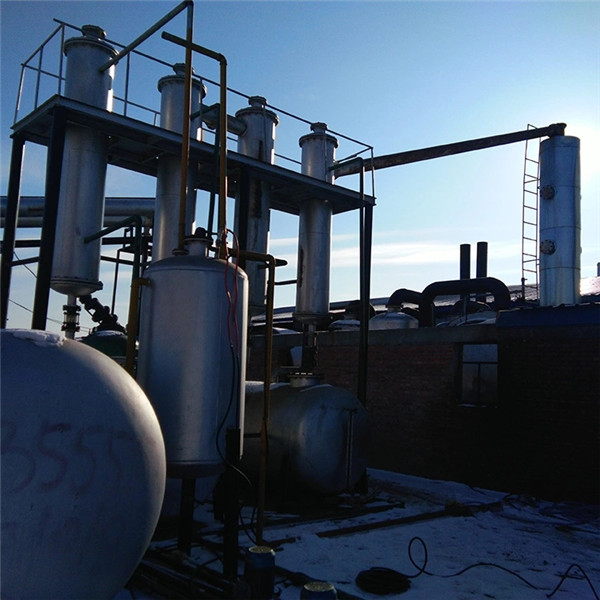

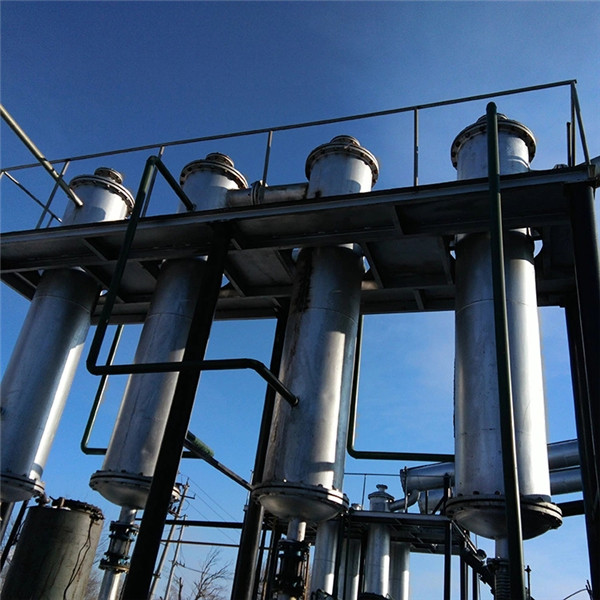

C,Catalyst tower
It has three tower layer inside the catalyst tower
Every layer will be put catalyst for impurities removal ,decolor and smell removal according to raw material oil! To purify oil !it is Chemical reaction
Catalyst formular will be tailor make according to customer
D.Cooling system including pipe condenser ,condenser ,calandria cooling system and cooling tower
then the clean oil gas will go though the strong cooling system to low down the temperature quickly
E,oil water separator tank
The clean oil gas will be cooling down to become liquid oil into the oil water separator tank,it is physical reaction
F.stainless steel pipe filter
Pipe filter with filter bag which can prevent the invisible impurities size :300-500 mesh though ,it is physical reaction ,to purify oil
G.nagative pressure system
can make the running temperature low down,save energy ,improve efficiency ,ensure the safety of running !
H.water sealing
There will be few flammable gas which can not be cooling down in the normal condition after passing though the cooling system,though water sealing it will be go though gas burner ,recycle used by heating the reactor
Specification
Item | Contents | |
Input-Raw Materials | Waste engine/motor oil/Lubrication oil | |
Average out-put oil rate | 85%-90% | |
By-products | Diesel oil, waste gas, slag | |
Structure form | Horizontal | |
Operating pressure | Constant pressure | |
Heating material | Coal, charcoal, fuel gas, fuel oil | |
Model(Diameter*Length)(mm) | Reactor size | Capacity |
D1500*L3000 | 3 Ton/Day | |
D2000*L5000 | 5 Ton/Day | |
D2800*L6000 | 10 Ton/Day | |
Material of reactor | Q245R boiler plate | |
Thickness of reactor | 16mm, 18mm | |
Mode of cooling | Circulating water cooling | |
Space needed | Length: 30m, Width :10 m at most | |
Power consumption | Average 15 KW/h |

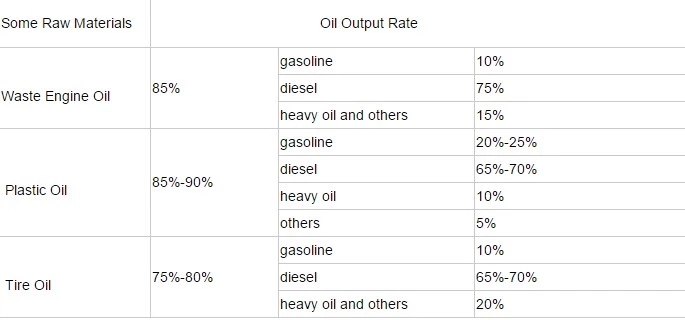

oil output rate

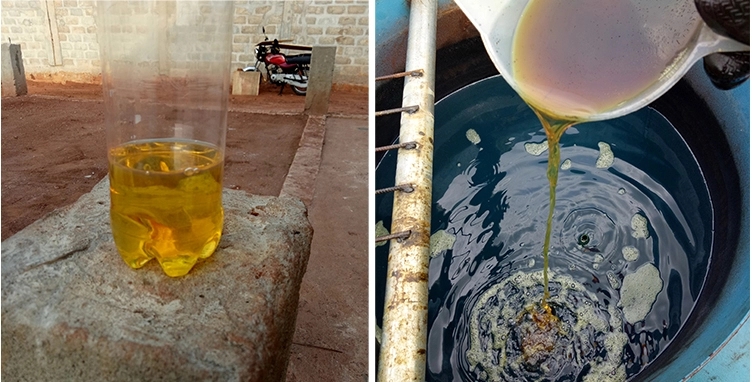

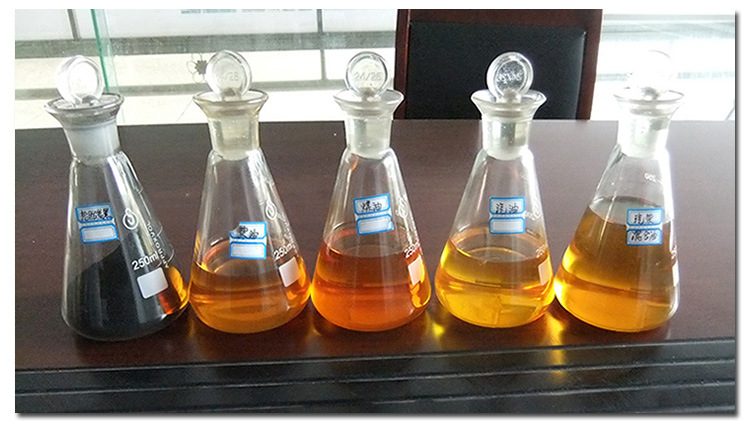

Refined diesel
